Onkyo TX-RZ70 Review

Onkyo TX-RZ70
Votes 4 4
Rating 5 5
If you click a link on this page and make a purchase, we may receive a small commission at no extra cost to you.

Onkyo TX-RZ70 review

When planning to purchase an AV receiver, a future user is faced with numerous questions that cannot always be dealt with without a specialist. We will try to answer many of these questions in a review of one of the receivers - Onkyo TX-RZ70. During the review, we evaluated the technical characteristics and features of the device. 9.4 out of 10 - this is the estimate that we consider fair. The release of this receiver took place in 2023. The model from Onkyo can process 11.2-channel sound.

Onkyo TX-RZ70 Pros

  • The receiver has a function of wireless connection to the Internet via Wi-Fi.
  • Bluetooth is now one of the key wireless communication protocols. In AV receivers, it is used for audio signal transmission or remote control. And it is in the model under review that Bluetooth support is implemented.
  • The presence of a USB port allows the receiver to play content from external media.
  • Dolby Atmos technology has been included in this model specifically to create a 3D effect when watching movies, which reveals all its features with a minimum 5.1 configuration.
  • Onkyo TX-RZ70 with an adaptive and flexible DTS:X surround format can support any speaker configuration, unlike Dolby Atmos.
  • IMAX Enhanced is a licensing and certification program under which receivers, including Onkyo TX-RZ70, deliver that crisp 4K HDR picture and powerful sound by IMAX.
  • With 4K/120Hz pass-through support, it is possible to pass data through this model without degrading image quality.
  • The TX-RZ70 is fitted with the 8K pass-through feature and able to send 8K signals directly to an 8K TV without degrading image quality.
  • ARC feature eliminates the need for an additional composite or optical cable when connecting this unit to a TV.
  • eARC is more bandwidth-intensive than ARC and therefore allows Onkyo TX-RZ70 to support advanced high-quality audio formats.
  • The manufacturer claims support for CEC in Onkyo TX-RZ70 and therefore you can control any HDMI-connected device using one remote control.
  • This receiver supports the data encryption protocol HDCP 2.3 which allows licensed devices to play high definition audio and video.
  • Can stream audio using the AirPlay protocol.
  • Has access to the Amazon Music network service.
  • Stream music from one of the most popular services Spotify directly on the Onkyo TX-RZ70.
  • The main functions of this model can be controlled using voice control.
  • This receiver consumes less power thanks to ECO mode.
  • Onkyo TX-RZ70 uses bi-amping to amplify each dynamic in a speaker separately, resulting in clearer, better sound.
  • The reviewed receiver has a Pure Direct mode, when used it feeds sound directly to the amplifier and bypasses any DSP processing.
  • When using the TX-RZ70, it is possible to switch between the main and additional set of speakers - speaker A/B switching.
  • This AV receiver is able to use 3 zones to send a source signal to speakers or a separate audio system in different locations.
  • With the included microphone, the Onkyo TX-RZ70 can use the auto speaker calibration mechanism to create the most suitable soundstage.

Onkyo TX-RZ70 Cons

  • The TX-RZ70 has not a phono (MM) input for connecting a phonographer or turntable.
Add another receiver to comparison
We didn't find anything to show here

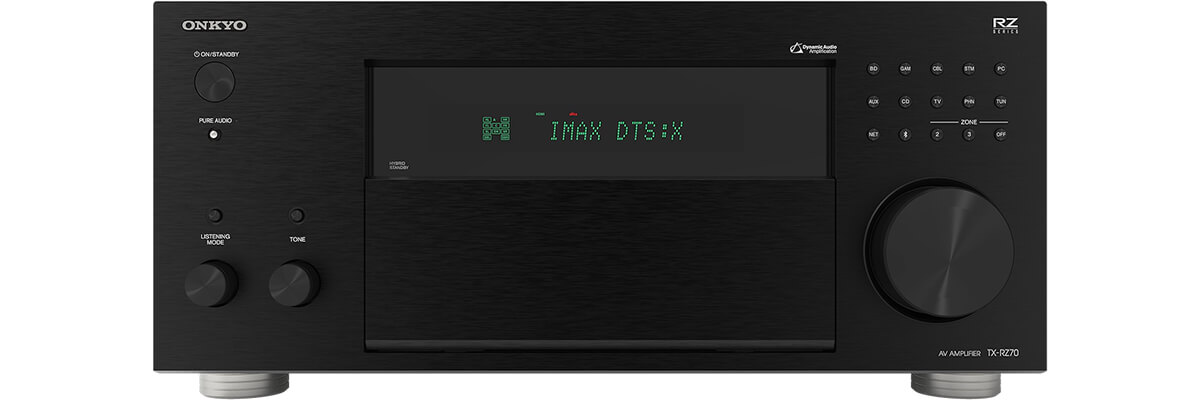

Onkyo TX-RZ70 back and front view

Onkyo TX-RZ70 Onkyo TX-RZ70

Onkyo TX-RZ70 specs and features

Amplifier

Channels 11.2
Stereo power (RMS), W/Ohm 140/8
Output impedance, Ohm 8
Frequency response 10Hz-100KHz
THD in stereo, % 0.08

Audio features

Digital to analog converter (DAC) 384 KHz/32-bit
Bi-amping
Pure direct (straight)
Auto speaker calibration AccuEQ
Speaker A/B switching
Other audio features Advanced Music Optimizer, Hi-Res audio, Dynamic Audio Amplification, CinemaFILTER

Connectivity

Wi-Fi 2.4/5GHz
USB 2 (USB 2.0)
Bluetooth
Ethernet (RJ45) 1
DLNA
MHL

Streaming services

Apple Music (AirPlay) AirPlay, AirPlay 2
Amazon Music
Spotify
Other streaming services Deezer, TIDAL, Pandora, SiriusXM, Napster, SoundCloud, Amazon Music, Amazon Music HD, MOOD:Mix

Extensive connection

HDMI input/output 7/3
HDMI ARC (Audio Return Channel)
HDMI eARC (Enhanced Audio Return Channel)
HDMI CEC
Digital content protection (HDCP) HDCP 2.3
Subwoofer output (LFE) 2
Headphone output 1 x 6.3
Optical digital input 2
Coaxial digital input 2
Composite input 2
Component input/output 1/0
Phono (MM) input
Front panel connectors phones, setup mic
Multi channel preamp output

Video features

HDR (High Dynamic Range) HDR10+
4K signal pass-through 4K/120Hz
8K signal pass-through 8K/60Hz
HDMI signal pass-through
3D signal pass-through
HDMI pass-through in standby mode
Video conversion analog to HDMI
Analog to HDMI scaling
HDMI to HDMI scaling
Dolby Vision
Other video features Variable Refresh Rate, Auto Low Latency Mode

Additional features

Voice control Amazon Alexa, Google Assistant, Siri, Josh.AI
App control iPhone, iPad, iPod, Android
Display colour OSD
Tuner AM, FM
Sleep timer
Auto power off
ECO mode
Graphical user interface (GUI)
Setup assistant
Firmware update network, USB
Other additional features IP Control, Web Control, App Control

Multi-room

Multi-room zones 3
Zone audio output speaker, preout
Zone HDMI output
Multi-room control FlareConnect
RS-232 1
Remote control input/output (IR) 1/0
DC trigger output (12V) 1

Multichannel surround

Dolby Atmos
Dolby TrueHD
Dolby Surround
Dolby (other) DSD, LPCM
DTS:X
DTS HD Master
DTS Virtual:X
DTS Neural:X
DTS (other) DTS-ES, DTS 96/24, DTS-HD, DTS-EXPRESS
Auro-3D
IMAX Enhanced
Multichannel stereo

Audio file formats

MP3
WMA
AAC
WAV
FLAC
ALAC
Other audio file formats AIFF, DSD

Power

Operational power consumption, W 1095
Standby consumption, W 0.1
Removable power cord

Dimensions

Size W x H x D, cm/inches 17.2 x 7.5 x 18.7 / 43.5 x 20.1 x 48
Weight, kg/lbs 22/48.5

Other

Release year 2023
